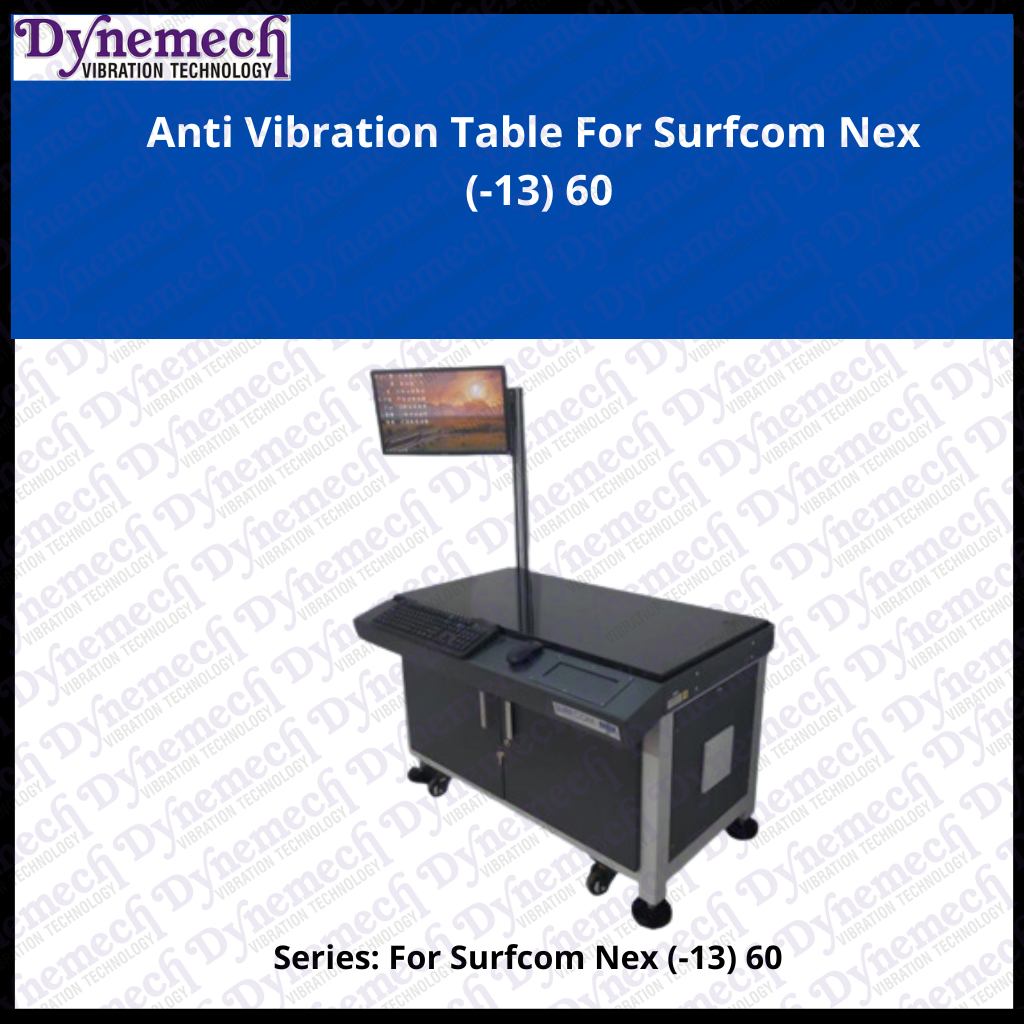

Dynemech Anti Vibration Precision Metrology Table for Zeiss Surfcom Nex (13)P-60

1. Granite base of size L 900 X B 600 X T 50 mm
   2. 60 mm Tubular Structure with cross member
   3. Wrap Around Construction
   4. Swiveling bracket for monitor
   5. 65 X 65 mm AV pads at 9 places
   6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
   7. 4 No’s – 3” Wheel
   8. Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
   9. Power Strip in Rear; controller, CPU and UPS inside structure
   10. Drawing Pouch L.H Side, cable manager at rear side
   11. Front double door with handles and lock
   12. Leveling Ball, Spanner 24/27
   13. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
   14. Instrument sticker
   15. Overall dimensions: L 920 X B 820 X H 730 (over granite base) mm
   16. Execution in wooden box
