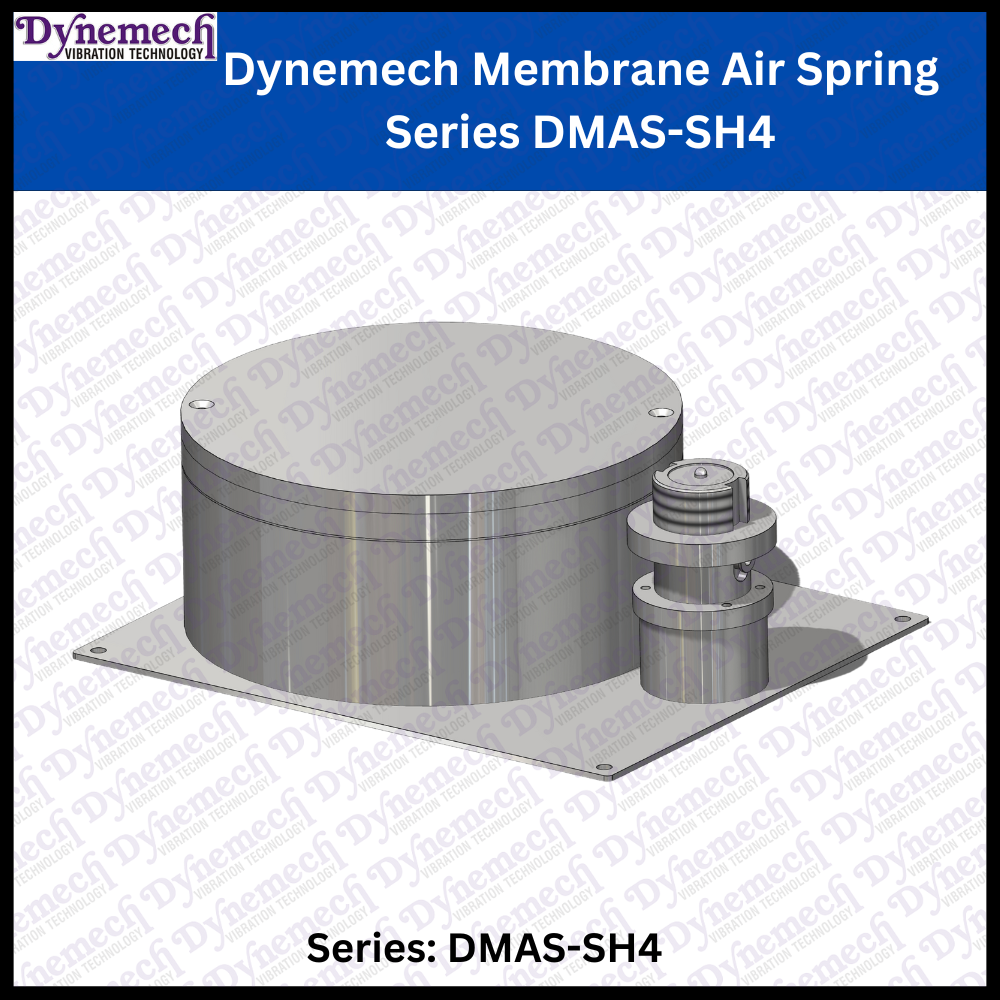

Dynemech DMAS-SH4 system consists of three master pneumatic isolators for 3-point precision levelling. Each pneumatic damping isolator consists of a self-levelling plunger mechanism. Which is the load sensing, and heigh-controlling element. The system is supplied with pressure regulator, distributor, Clean dry air is required to be supplied to the system. The DMAS-SH4 is lightweight aluminium body. The inner chamber is split into two parts i.e. load volume and damping volume. damping up to 20% can be adjusted using external valve manually. A thin reinforced elastomeric diaphragm supports the load. A safety valve protects diaphragm from over inflation. The final precise levelling of the system can be done using levelling nut provided on the plunger mechanism.
