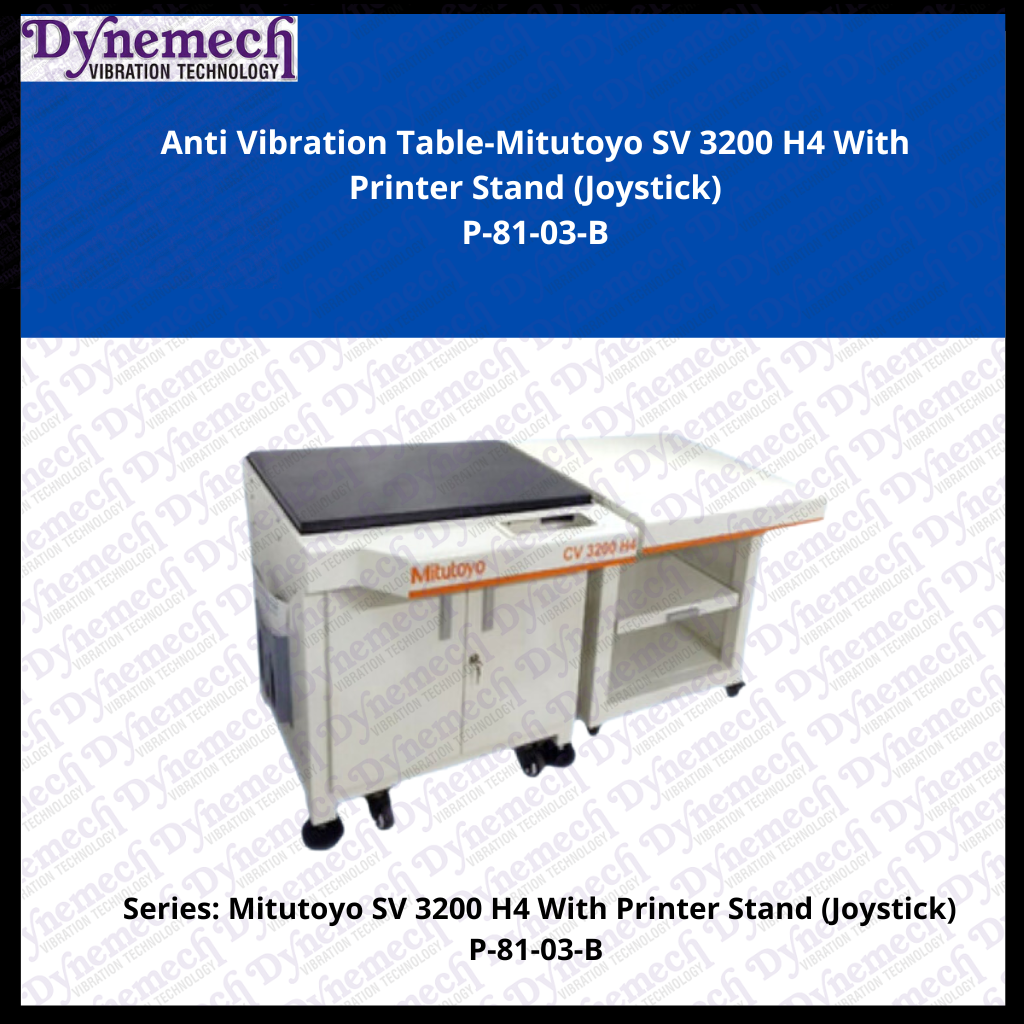

Dynemech Mild Steel Anti Vibrating Table And Platforms for Surftest SV3200 H4, P-81-03-B

1. Granite base of size L 750 X B 600 X T 30 mm
   2. 60 mm Tubular Structure
   3. Wrap Around Construction with left angular profile
   4. 65 X 65 mm AV pads at 8 places
   5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
   6. 4 No’s – 3” Wheel
   7. Front keyboard panel with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
   8. Power Strip in Rear; controller, CPU and UPS inside structure
   9. Drawing Pouch LH Side, cable manager at rear side
   10. Front double door with handles and lock
   11. Additional printer stand to accommodate CPU console, monitor, keyboard and mouse; pull out tray for printer. LH and RH sides closed; top Marine ply with Matt finish, 3” wheels with brake.
   12. Leveling Ball, Spanner 24/27
   13. Powder Coat, structure, side sheets and doors RAL 9002
   14. Instrument sticker
   15. Overall dimensions: L 770 X B 770 X H 730 (over granite base) mm
   16. Printer stand dimensions: L 600 X B 770 X H 730 mm
   17. Weight: kg
   18. Execution in wooden box

https://vibrationmountsindia.com/

Note- Freight charges are excluded.
