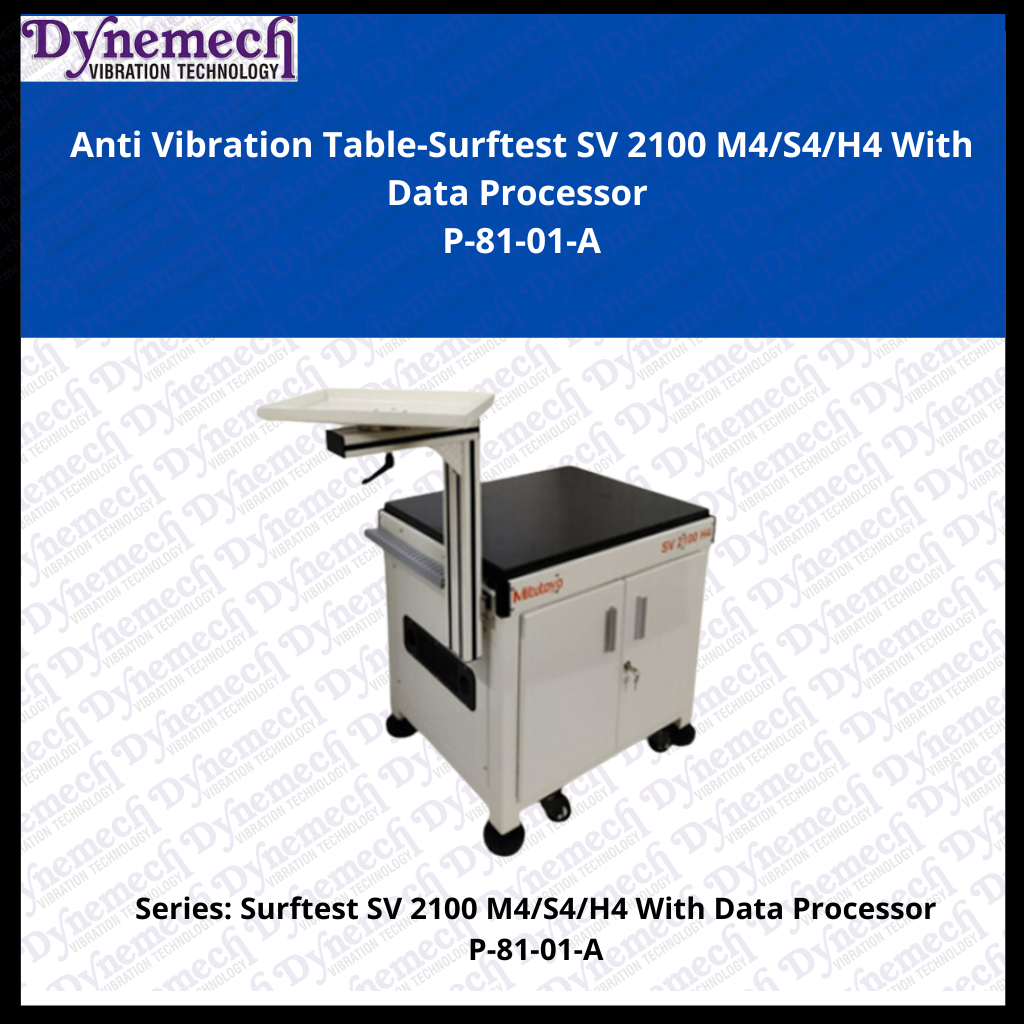

Dynemech Precision Measuring Metrology Instrument Anti Vibration Tables for SV 2100 M4/S4/H4, P-81-01-A

1. Granite base of size L 750 X B 600 X T 30 mm
   2. 60 mm Tubular Structure with cross member
   3. Wrap Around Construction with left angular profile
   4. Front pivot jointed heavy duty links with extended horizontal connecting profile and vertical 45 X 45 connecting profile. At top end another horizontal 90 X 45 profile connection with needle thrust bearing supported swiveling assembly with tray to suit display unit with clamping lever at bottom (newly introduced!) for placing data processor.
   5. 65 X 65 mm AV pads at 8 places
   6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
   7. 4 No’s – 3” Wheel
   8. Power Strip in Rear; controller, CPU and UPS inside structure
   9. Drawing Pouch LH Side, cable manager at rear side
   10. Front double door with handles and lock
   11. Leveling Ball, Spanner 24/27
   12. Powder Coat, structure, side sheets and doors RAL 9002
   13. Instrument sticker
   14. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
   16. Weight: kg
   17. Execution in wooden box

https://vibrationmountsindia.com/

Note- Freight charges are excluded.
